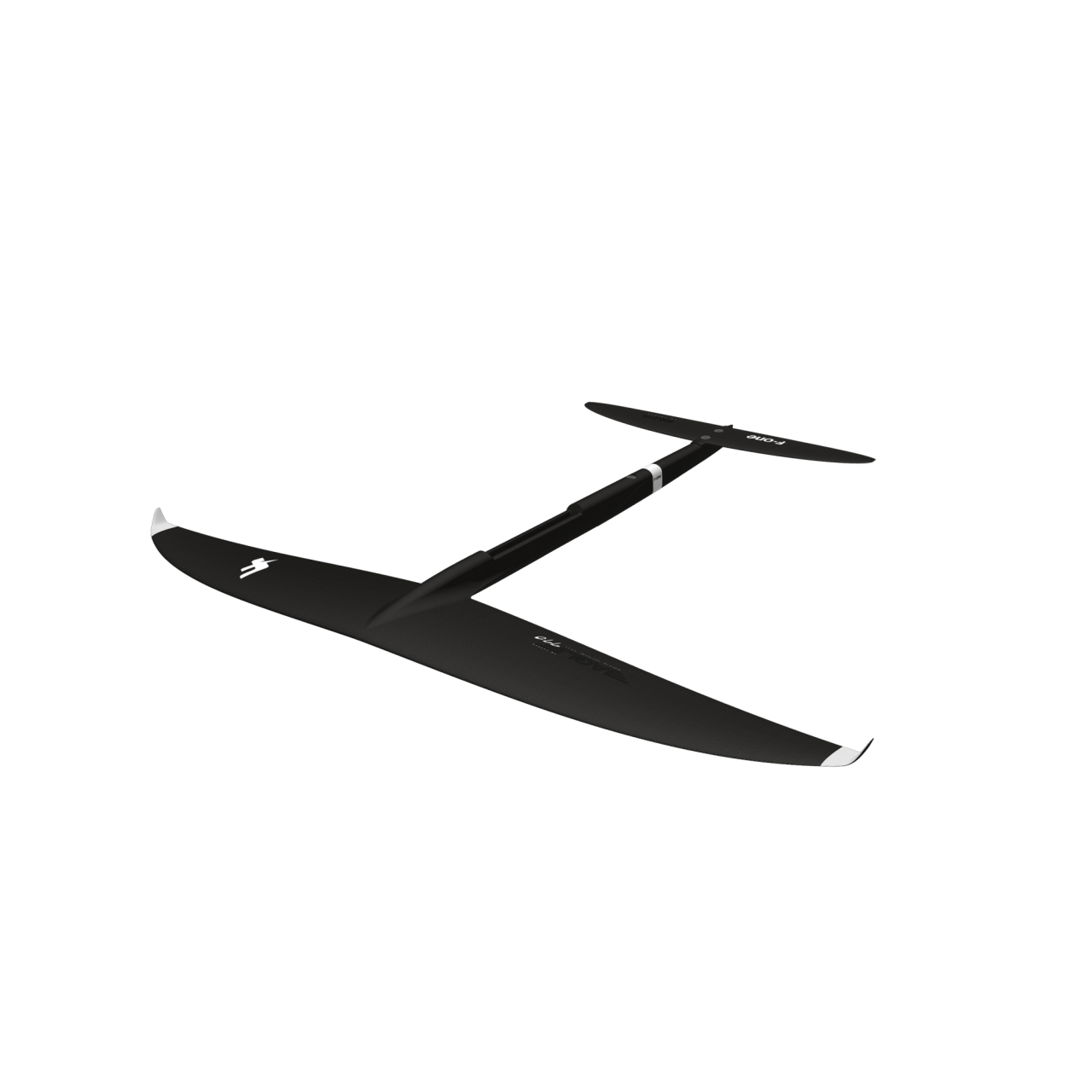

EAGLE

The foils of the EAGLE line are designed to bring you thrilling speed potential, incomparable downwind sensations, and everlasting cruising time above the water.

  • Remarkable speed and downwind performances
  • Unrivaled time above the water
  • Thin and optimized design for minimal drag

Available in 690cm² / 790 cm² / 890 cm² / 990 cm² / 1090 cm² / 1190 cm² / 1290cm²
Ref.  77227-0130 / 77227-0131 / 77227-0132 / 77227-0133 / 77227-0134 / 77227-0136 / 77227-0135

Read more...
EAGLE HM CARBON
Plane

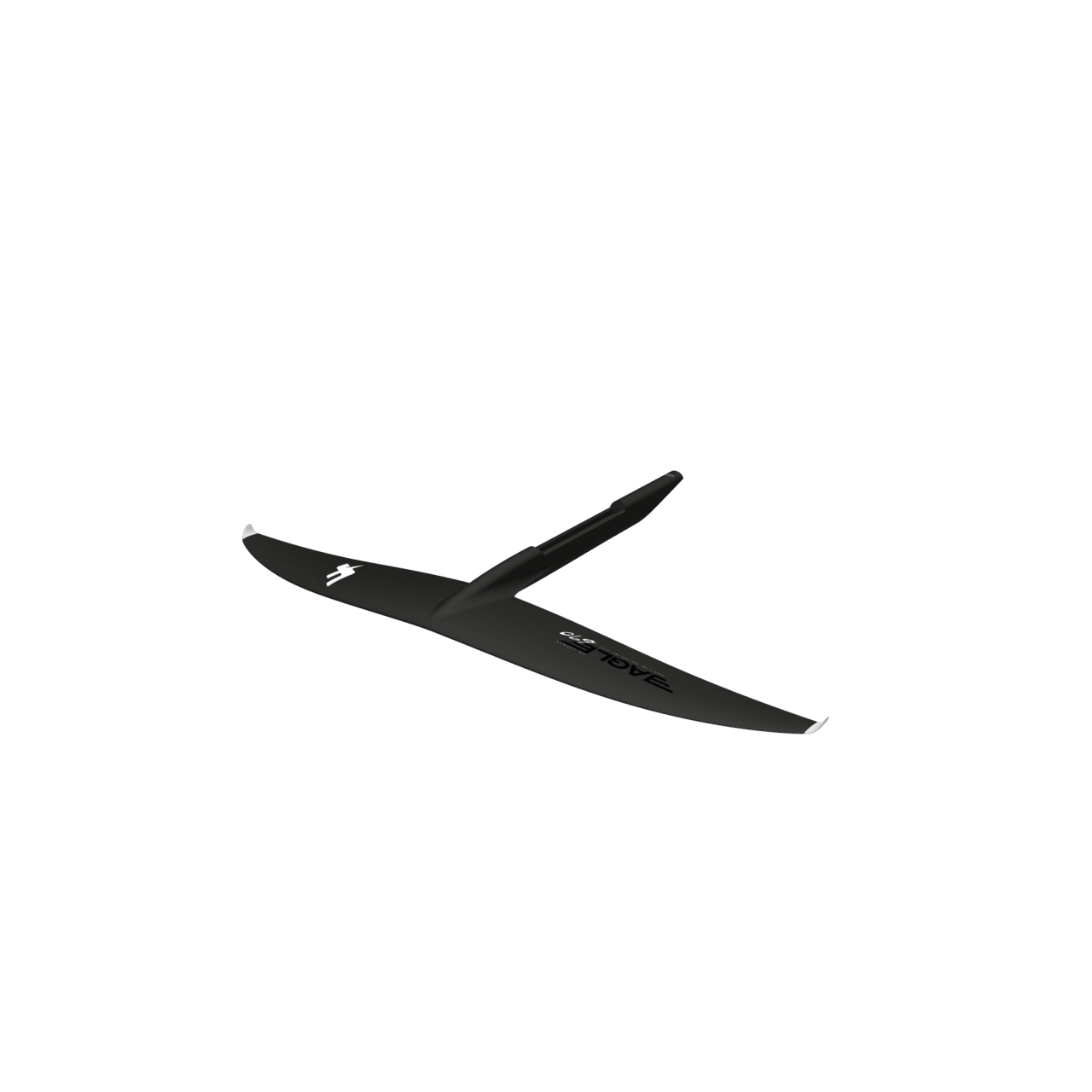

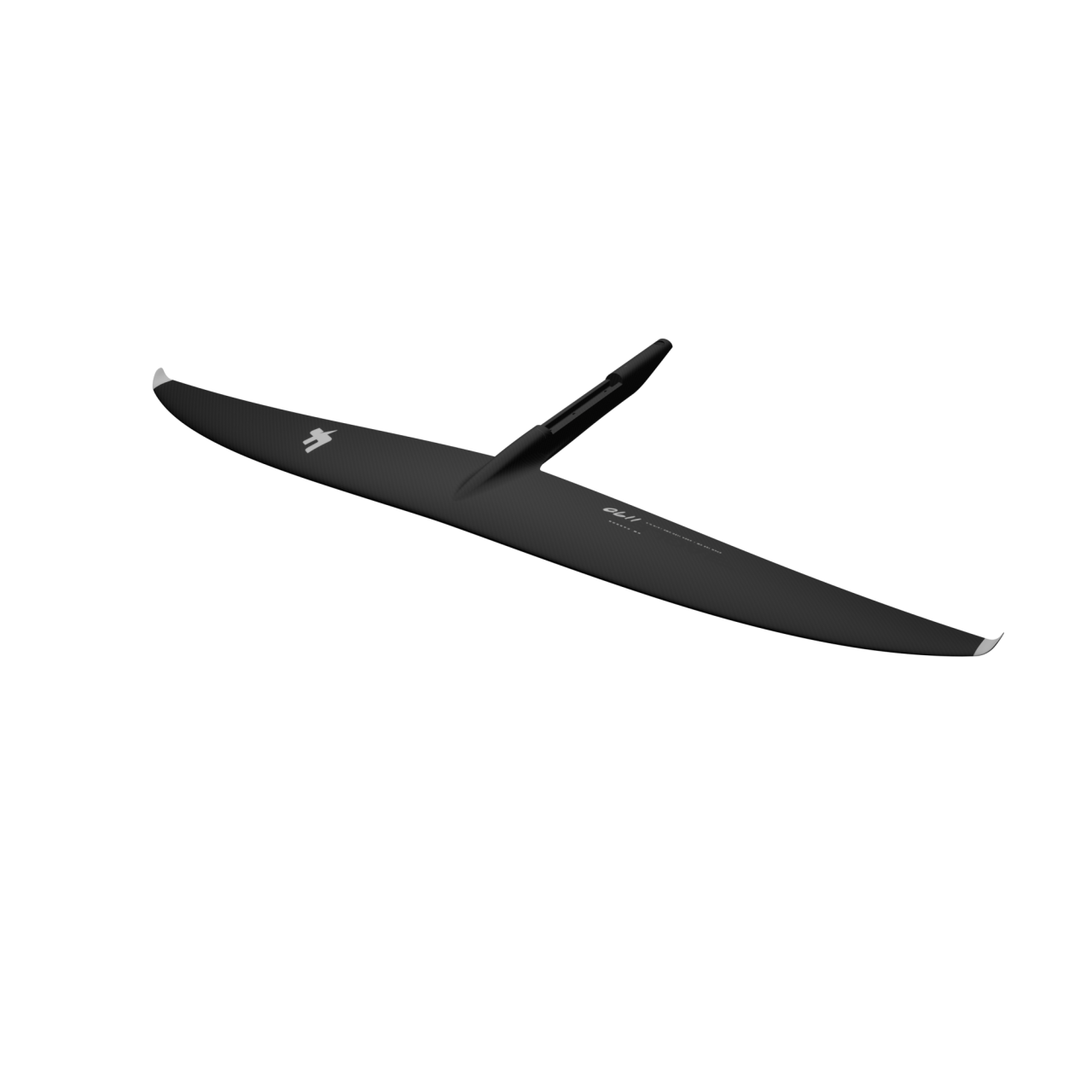

EAGLE HM CARBON 14
690

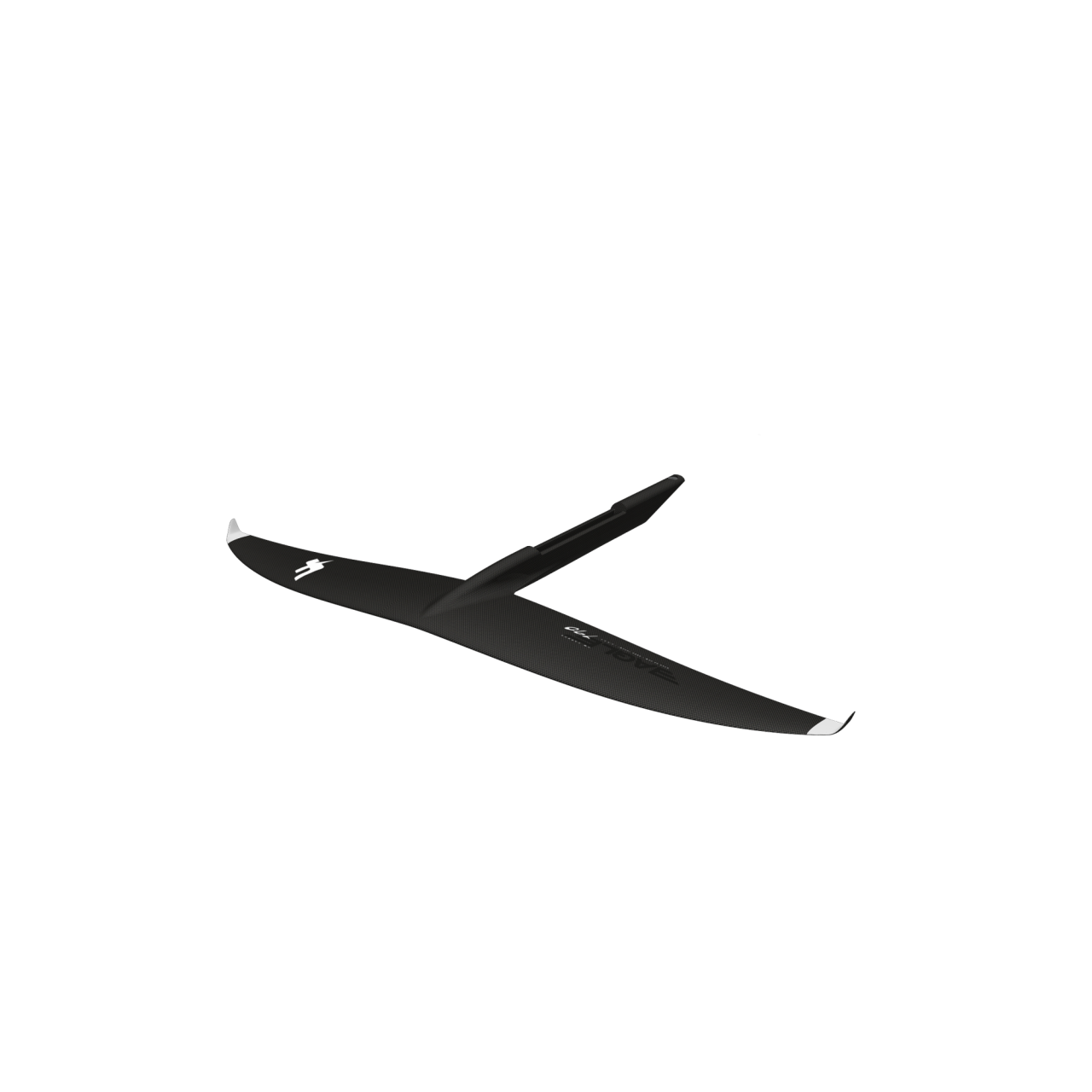

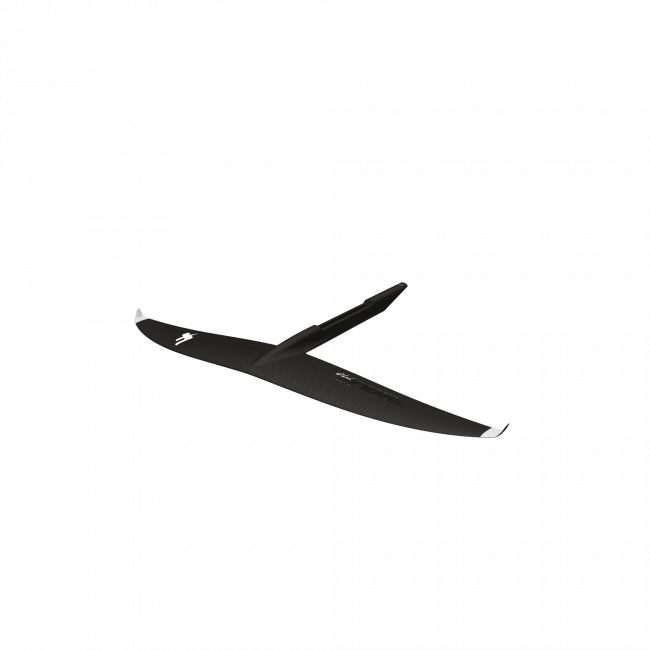

EAGLE HM CARBON 10
790

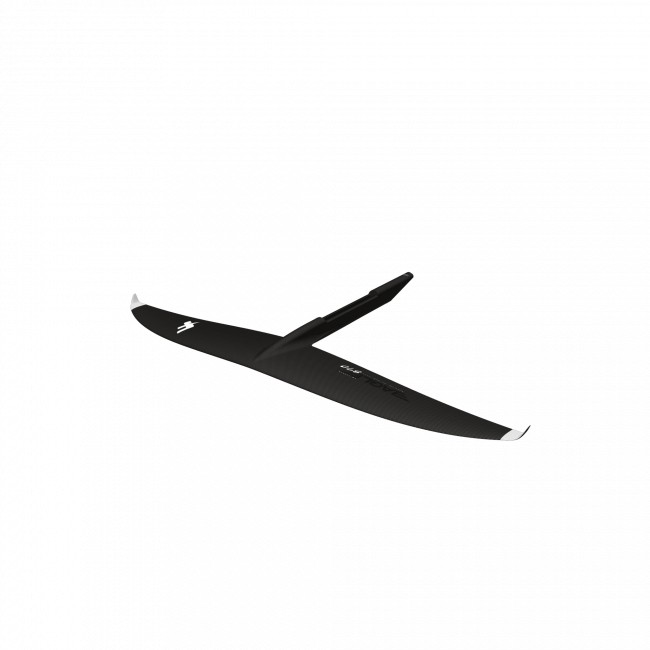

EAGLE HM CARBON 9
890

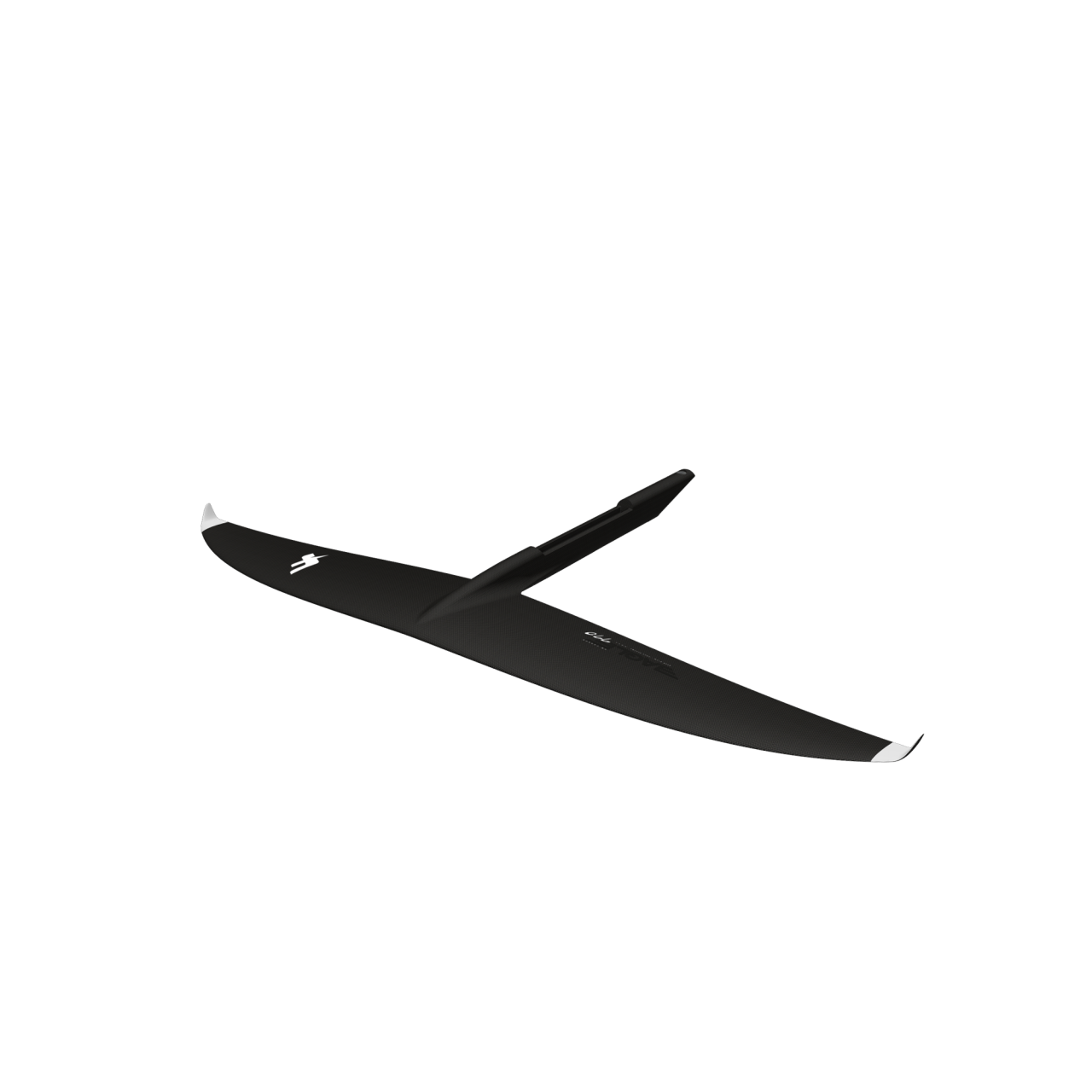

EAGLE HM CARBON 11
990

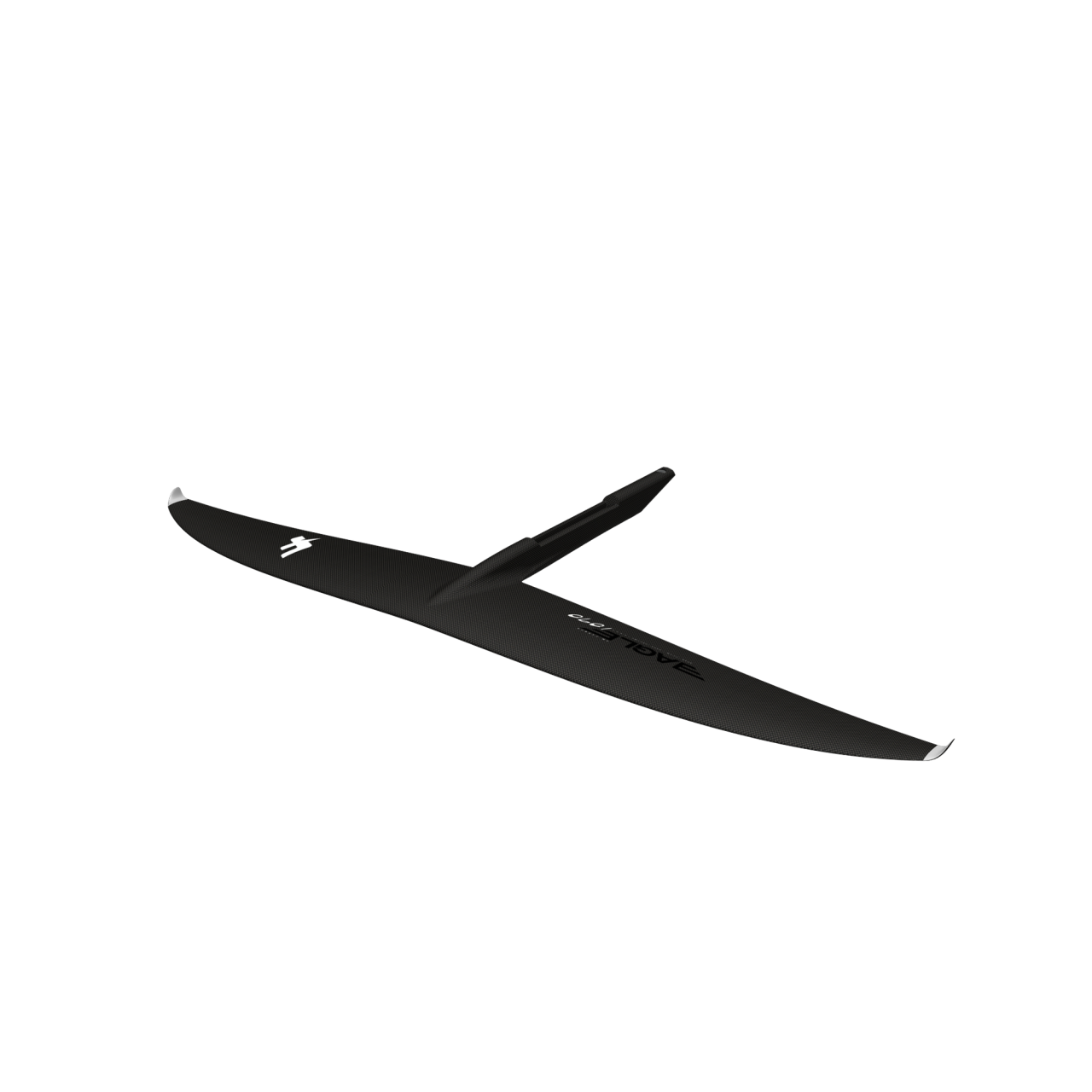

EAGLE HM CARBON 12
1090
EAGLE HM CARBON 17
1190
EAGLE HM CARBON 15
1290

Product video

Program

100%
Speed
90%
Carving
90%
Pumping
100%
Glide Ratio

Technical Specifications

The EAGLE is the ideal foil for anybody seeking speed and fantastic downwind abilities. With its very thin profile and upturned winglets, the EAGLE’s induced drag is reduced to a minimum. It is a very efficient foil whose lift will allow you to stay above the water and cruise for longer than you could have ever imagined at any speed without the foil abruptly stalling and dropping.

Simultaneously, its upwind abilities are noteworthy, bringing comfort, stability, and constant speed to your wing foiling rides. Pumping is effective and precise, and maneuvering will feel easy in any conditions.

Built using the Monobloc structure with pre-preg carbon, the foils are both very light and strong. This setup brings improved load transmission and better stiffness throughout the different parts for maximum control. The High Modulus Carbon fiber layup leads to even more rigidity and dependability that will propel you to incredible performances in each session. The TITAN connection allows to plug in either an aluminum or carbon mast.

The EAGLE is available in seven sizes, from 690 cm² to 1290 cm².

  • The 690 cm² and the 790 cm² are perfect for a strong wing session or a long downwind. It will also fit riders of a smaller build and any experienced foiler looking to break their personal records.
  • The 890 cm² and 990 cm² are great all-round sizes that will satisfy a wide range of advanced riders looking for exhilarating sensations and a pure downwind glide.
  • The 1090 cm², 1190 cm² and 1290 cm² bring more accessibility to downwind. They are great choices to start in SUP downwind and for riders of a bigger stature. The 1290 will excel in light wind and flat downwinds as well.


* Downwinding requires physical preparation, proper security devices (ie. leash, flashlight, safety vest), and assistance at sea. Please do not attempt any downwinders alone nor without proper training.

AREA (cm²) SPAN (cm) ASPECT RATIO WEIGHT (kg)
EAGLE 690 690 82 9,7 0,92
EAGLE 790 790 86,5 9,5 1.10
EAGLE 890 890 92,5 9,6 1,23
EAGLE 990 990 97 9,5 1,31
EAGLE 1090 1090 102 9,5 1.48
EAGLE 1190 1190 106 9,4

1,55

EAGLE 1290 1290 110,5 9,5 1,58



EAGLE HM CARBON 13

How to choose your plane ?

FW EAGLE HM CARBON 690  EAGLE HM CARBON 790  EAGLE HM CARBON 890  EAGLE HM CARBON 990  EAGLE HM CARBON 1090  EAGLE HM CARBON 1190 EAGLE HM CARBON 1290
MONOBLOC TAIL

Recommended first choice

DW XS 145

DW XS 145

DW XXS 170

DW XXS 170

DW XXXS 190

DW XXS 210

DW XXS 210

MONOBLOC TAIL

Second choice depending on the rider’s level and the chosen discipline

DW XXS 170

DW XXS 170

DW XXXS 190

DW XS 145

DW XXXS 190

DW XS 145

DW XXS 210

DW XXS 170

DW XXXS 190

DW XXXS 190



  • 2024 HYDROFOILS CARBON
